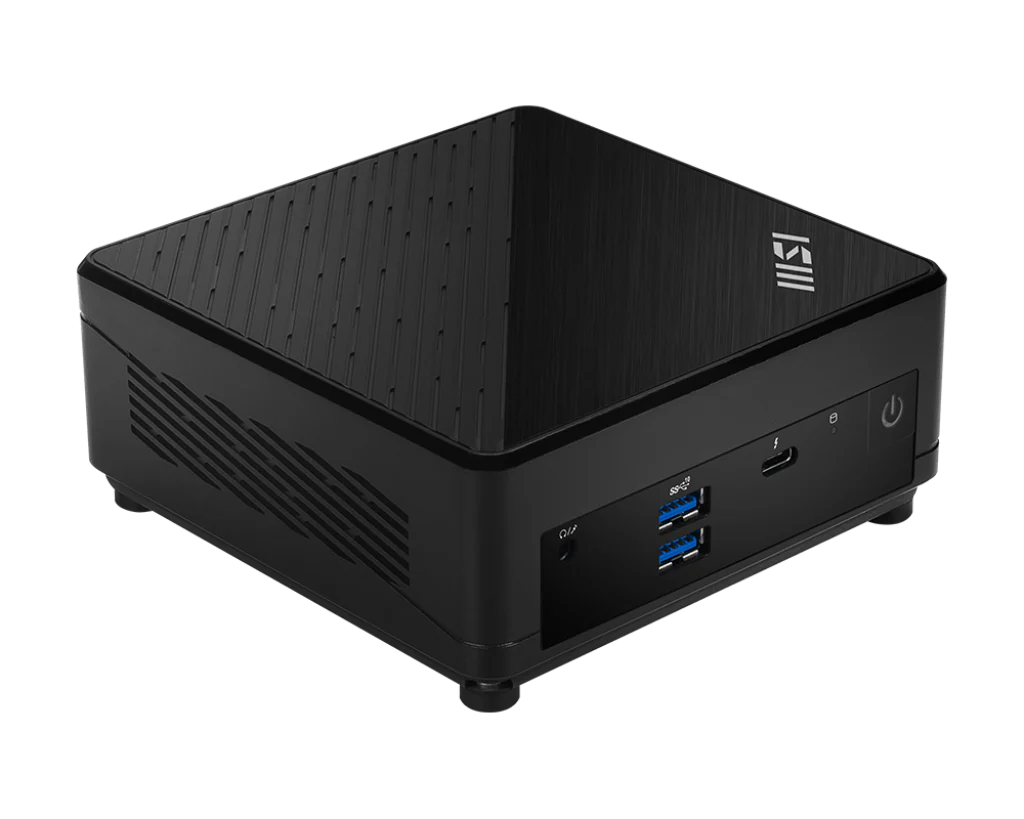

MSI Mini Barebone PC Cubi 5 12M-020BDE
HomeShop

MSI Mini Barebone PC Cubi 5 12M-020BDE

MSI Mini Barebone PC Cubi 5 12M-020BDE

$681.80
MSI Mini Barebone PC Cubi 5 12M-020BDE—
$681.80

Die Geschichte

  • Intel Core i7-1255U der 12. Generation
  • Unterstützt drei Displays gleichzeitig für mehr Produktivität
  • Thunderbolt 4 bietet die schnellste, vielseitigste Verbindung zu jedem Dock, Display oder Datengerät & NAS
  • Dual LAN: der beste Weg, um Ihre Daten zu sichern und Hacker abzuwehren (mit MSI exklusivem BIOS)
  • Dank WiFi 6-Technologie 75 % geringere Latenz
  • Unterstützt Standard-VESA-Montage zum Befestigen an einem Monitor


Part No 936-B0A811-079
Betriebssystem N/A
MKT Name Cubi 5 12M
MKT Spec Cubi 5 12M-020BDE
Color ID1/Black-Black-Black
SKU Number 936-B0A811-020
CPU Number Intel Core i7-1255U
CPU Clock 1.7GHz
CPU Cores 10
TDP 15W
Cache 12 MB Intel® Smart Cache
Threads 12
Chipsets Soc
Arbeitsspeicher Module Type SO-DIMMMemory Slot(Total) 2Memory Slot(Free) 2Max Capacity Max 64GB
SSD Interface N/A
Speicher M.2 slots(Total) 1M.2 slots(Free) 12.5" Drive Bays(Total) 12.5" Drive Bays (Free) 13.5" Drive Bays(Free) 0mSATA slots(Free) 0
Audio Realtek ALC256, 2.1 Channel HD Audio
LAN 1x Realtek RTL8111H+1x Realtek RTL8125BG-CG
WLAN Version Wi-Fi 6E+BT
BT Version 5.3
Model B0A8
Thunderbolt 1x (ThunderBolt 4)
Entity MKT Name Cubi 5 12M-020BDE
Schnittstellen (Vorne) 2 x USB 3.2 Gen 2 Type A
Mic-in/Headphone-out combo 1
Schnittstellen (Rückseite) 2 x USB 3.2 Gen 2 Type A (R)
RJ45 2
HDMI out 1x (v2.0b)
DP out 1x (v1.4)
Memory Size N/A
Memory Type N/A
Memory Speed N/A
Module Type SO-DIMM
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB
Power 65W, ADAPTOR
VESA size 100 x 100 mm
Product Dimension (WxDxH) (mm) 124 x 124 x 53.7
Product Dimension (WxDxH) (inch) 4.88 x 4.88 x 2.11
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Outer Carton Dimension Standard (WxDxH) (mm) 221 x 506 x 469
Outer Carton Dimension Standard (WxDxH) (inch) 8.7 x 19.92 x 18.46
Weight (Net kg) 0.59
Net Weight (lbs) 1.3
Weight (Gross kg) 1.33
Gross Weight (lbs) 2.93
Liter 0.66L
Pint 0.66L
Max Turbo Frequency up to 4.70 GHz
CPU Core Name ALDER LAKE
CPU Socket FCBGA-1744pin
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
CPU Cooler Air cooling
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Warranty 24months
Power Cord 1
AC Adaptor 1
Warranty Card N/A
Quick Guide 3
VESA Mount kit 1
EAN 4711377060202
Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
SSD Form Factor N/A
SSD Config N/A
SSD Size N/A
mSATA slots(Free) 0
M.2 slots(Total) 1
M.2 slots(Free) 1
2.5" Drive Bays(Total) 1
2.5" Drive Bays (Free) 1
3.5" Drive Bays(Free) 0
WLAN INTEL/AX211.NGWG.NV
USB 3.2 Gen 2 Type A 2
USB 3.2 Gen 2 Type A (R) 2
USB 3.2 Gen 2 (10G) Type A (R) 2
USB 3.2 Gen 2 (10G) Type A 2
Power Switch 1

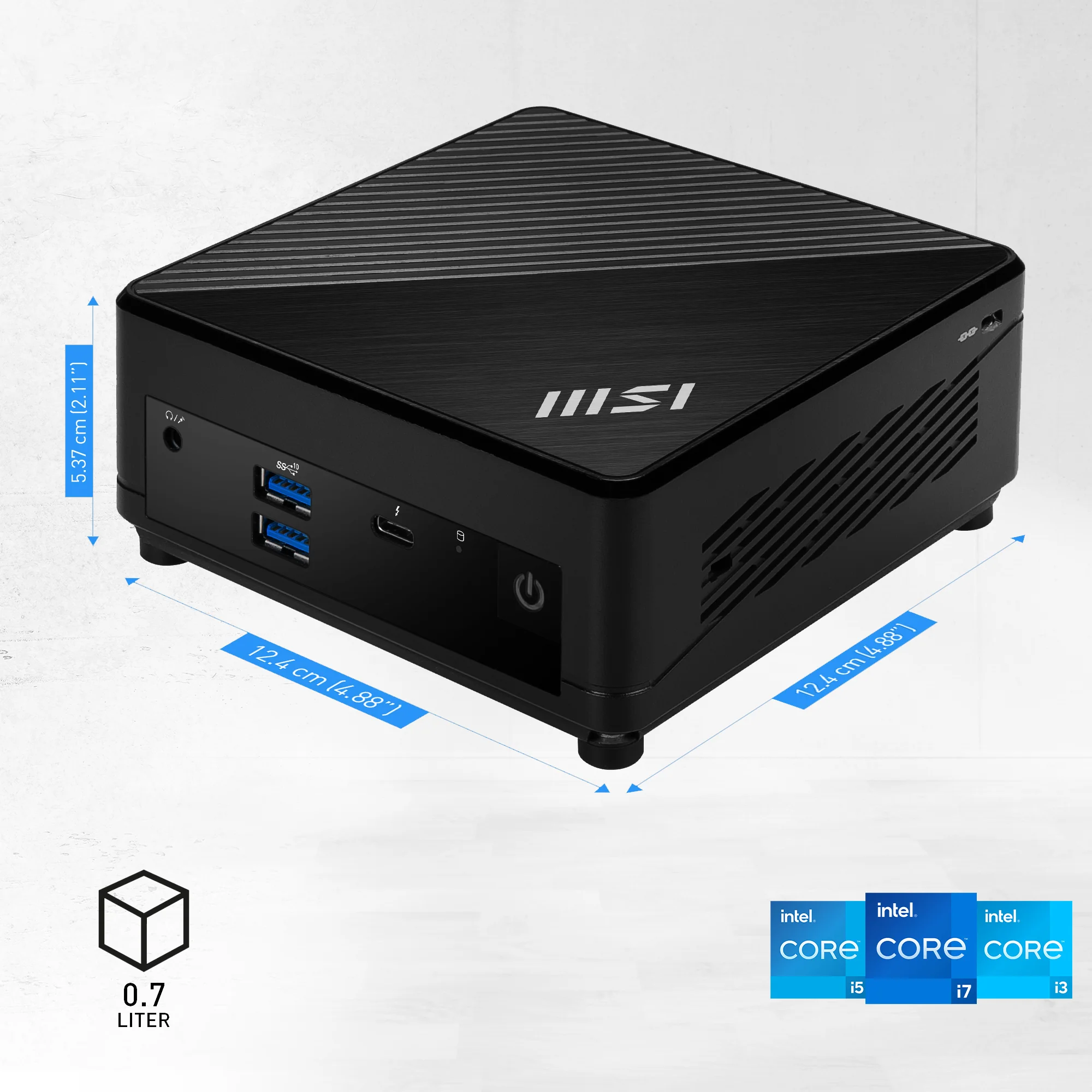

MSI Mini Barebone PC Cubi 5 12M-020BDE - Image 2
