ChipsetAMD B850
CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
\n• 1DPC 1R Max speed up to 8200+ MT/s
\n• 1DPC 2R Max speed up to 8000+ MT/s

Supports AMD POR Speed and JEDEC Speed
\nSupports Memory Overclocking and AMD EXPOTM
\nSupports Dual-Channel mode
\nSupports Non-ECC, Un-buffered memory
\nSupports CUDIMM, Clock Driver bypass mode only*
\n
\n* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
\n• The DIMM slots on this motherboard only have double-sided latches.
\n• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.\n
Onboard Graphics1x HDMI™
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.\n
Slot1x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

\nPCI_E1 slot
\n• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
\n• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
\n• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
AudioRealtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
\nSupports up to 32-Bit/384 kHz playback on front panel
\nSupports S/PDIF output
Storage2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G (Qty)

\nM.2_1 slot
\n• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
\n• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
\n
\nM.2_2 slot
\n• Supports up to PCIe 4.0 x4
\n• Supports 2280 storage devices
RAID• Supports RAID 0, and RAID 1 for SATA storage devices
\n• Supports RAID 0, and RAID 1 for M.2 NVMe storage devices
USB2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN1x Realtek® 8126 5G LAN
\n
Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x PUMP_SYS Fan
1x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTHWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
\nSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
\nSupports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
\n** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.\n
LED FEATURE4x EZ Debug LED
\n1x EZ Memory Detection LED
BACK PANEL PORTS\n\"\"\n
    \n
  1. Clear CMOS Button
    2. \n
  2. 5G LAN
    3. \n
  3. Wi-Fi / Bluetooth
    4. \n
  4. Audio Connectors
    5. \n
  5. Flash BIOS Button
    6. \n
  6. HDMI™
    7. \n
  7. USB 5Gbps Type-A
    8. \n
  8. USB 10Gbps Type-A
    9. \n
  9. USB 20Gbps Type-C
    10. \n
  10. USB 10Gbps Type-A
    11. \n
  11. Optical S/PDIF Out
    12. \n
\n
OPERATING SYSTEMSupport for Windows® 11 64-bit
BOX CONTENT\"\"
PCB InfoMini-ITX
170mmx170mm
","image":["/images/msitech.shop/images/product/mpg-b850i-edge-ti-wifi-1.png","/images/msitech.shop/images/product/mpg-b850i-edge-ti-wifi-2.png","/images/msitech.shop/images/product/mpg-b850i-edge-ti-wifi-3.png","/images/msitech.shop/images/product/mpg-b850i-edge-ti-wifi-4.png","/images/msitech.shop/images/product/mpg-b850i-edge-ti-wifi-5.png"],"sku":"mpg-b850i-edge-ti-wifi","brand":{"@type":"Brand","name":"MSI e-Shop"},"offers":{"@type":"AggregateOffer","lowPrice":94.38,"highPrice":94.38,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://msitech.shop/products/mpg-b850i-edge-ti-wifi","offerCount":1}}
MSI Mainboard MPG B850I EDGE TI WIFI
HomeShop

MSI Mainboard MPG B850I EDGE TI WIFI

MSI Mainboard MPG B850I EDGE TI WIFI

$94.38

Original: $269.66

-65%
MSI Mainboard MPG B850I EDGE TI WIFI—

$269.66

$94.38

Die Geschichte

  • Unterstützt AMD Ryzen™ 9000 / 8000 / 7000 Serie Desktop-Prozessoren
  • Unterstützt DDR5 Speicher, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra-Leistung: Direktes 8+2+1-Stromversorgungsdesign, Core Boost, Speicher-Boost, 10-lagige PCB aus 2 oz dickem Kupfer und Material auf Server-Niveau
  • Frozr Guard: Vergrößerter Kühlkörper, MOSFET-Wärmepads mit 7 W/mk und M.2 Shield Frozr sind für Hochleistungssysteme und ununterbrochenes Gaming-Erlebnis ausgelegt
  • EZ DIY: EZ-Antenne, EZ-Conn-Design und EZ-Frontpanel-Kabel
  • Blitzschnelles Spielerlebnis: PCIe 5.0-Steckplatz, Lightning Gen 5 M.2
  • Highspeed-Konnektivität: 5G-LAN mit Wi-Fi 7-Lösung und USB 20 Gbit/s
  • Audio Boost 5: Genieße mit studiotauglicher Audioqualität ein echtes Gaming-Erlebnis.
    • Chipset AMD B850
    CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
    Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 8000+ MT/s

    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • The DIMM slots on this motherboard only have double-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics 1x HDMI™
    Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

    PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
    Audio Realtek® ALC4080 Codec
    7.1-Channel USB High-Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    Supports S/PDIF output
    Storage 2x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
    2x SATA 6G (Qty)

    M.2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

    M.2_2 slot
    • Supports up to PCIe 4.0 x4
    • Supports 2280 storage devices
    RAID • Supports RAID 0, and RAID 1 for SATA storage devices
    • Supports RAID 0, and RAID 1 for M.2 NVMe storage devices
    USB 2x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    3x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    LAN 1x Realtek® 8126 5G LAN
    Internal IO 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x PUMP_SYS Fan
    1x System Fan
    1x ARGB+FAN+USB2.0 Header (JAF_2)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Addressable V2 RGB LED connector (JARGB_V2)
    1x TPM pin header(Support TPM 2.0)
    2x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE 4x EZ Debug LED
    1x EZ Memory Detection LED
    BACK PANEL PORTS
    1. Clear CMOS Button
    2. 5G LAN
    3. Wi-Fi / Bluetooth
    4. Audio Connectors
    5. Flash BIOS Button
    6. HDMI™
    7. USB 5Gbps Type-A
    8. USB 10Gbps Type-A
    9. USB 20Gbps Type-C
    10. USB 10Gbps Type-A
    11. Optical S/PDIF Out
    OPERATING SYSTEM Support for Windows® 11 64-bit
    BOX CONTENT
    PCB Info Mini-ITX
    170mmx170mm
    MSI Mainboard MPG B850I EDGE TI WIFI - Image 2

    Details & Handwerkskunst

    Jedes Detail wurde sorgfältig durchdacht, um Ihnen das perfekte Produkt zu bieten.

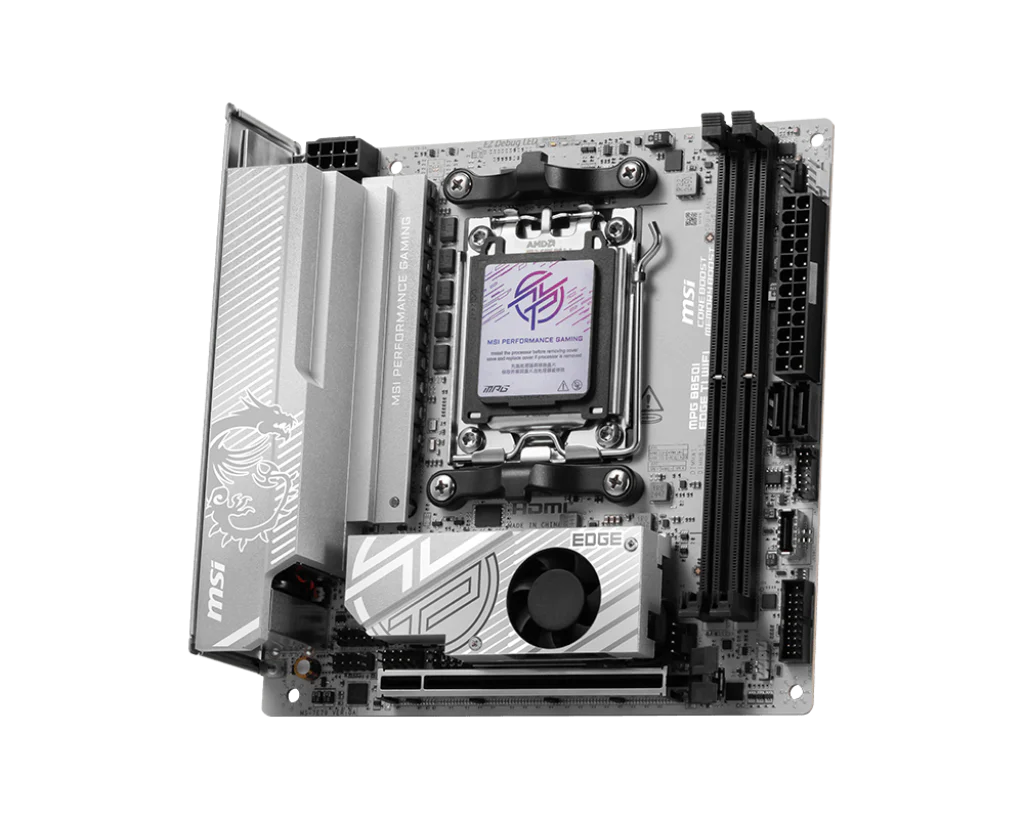

    MSI Mainboard MPG B850I EDGE TI WIFI - Image 3

    Details & Handwerkskunst

    Jedes Detail wurde sorgfältig durchdacht, um Ihnen das perfekte Produkt zu bieten.

    MSI Mainboard MPG B850I EDGE TI WIFI - Image 4

    Details & Handwerkskunst

    Jedes Detail wurde sorgfältig durchdacht, um Ihnen das perfekte Produkt zu bieten.

    MSI Mainboard MPG B850I EDGE TI WIFI - Image 5

    Details & Handwerkskunst

    Jedes Detail wurde sorgfältig durchdacht, um Ihnen das perfekte Produkt zu bieten.

    Description

    • Unterstützt AMD Ryzen™ 9000 / 8000 / 7000 Serie Desktop-Prozessoren
    • Unterstützt DDR5 Speicher, Dual Channel DDR5 8200+ MT/s (OC)
    • Ultra-Leistung: Direktes 8+2+1-Stromversorgungsdesign, Core Boost, Speicher-Boost, 10-lagige PCB aus 2 oz dickem Kupfer und Material auf Server-Niveau
    • Frozr Guard: Vergrößerter Kühlkörper, MOSFET-Wärmepads mit 7 W/mk und M.2 Shield Frozr sind für Hochleistungssysteme und ununterbrochenes Gaming-Erlebnis ausgelegt
    • EZ DIY: EZ-Antenne, EZ-Conn-Design und EZ-Frontpanel-Kabel
    • Blitzschnelles Spielerlebnis: PCIe 5.0-Steckplatz, Lightning Gen 5 M.2
    • Highspeed-Konnektivität: 5G-LAN mit Wi-Fi 7-Lösung und USB 20 Gbit/s
    • Audio Boost 5: Genieße mit studiotauglicher Audioqualität ein echtes Gaming-Erlebnis.
    • Chipset AMD B850
    CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
    Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    Ryzen™ 9000 Series Processors max. overclocking frequency:
    • 1DPC 1R Max speed up to 8200+ MT/s
    • 1DPC 2R Max speed up to 8000+ MT/s

    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPOTM
    Supports Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    • The DIMM slots on this motherboard only have double-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
    Onboard Graphics 1x HDMI™
    Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot (Qty)
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

    PCI_E1 slot
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
    Audio Realtek® ALC4080 Codec
    7.1-Channel USB High-Performance Audio
    Supports up to 32-Bit/384 kHz playback on front panel
    Supports S/PDIF output
    Storage 2x M.2 (Qty)
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
    2x SATA 6G (Qty)

    M.2_1 slot
    • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

    M.2_2 slot
    • Supports up to PCIe 4.0 x4
    • Supports 2280 storage devices
    RAID • Supports RAID 0, and RAID 1 for SATA storage devices
    • Supports RAID 0, and RAID 1 for M.2 NVMe storage devices
    USB 2x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    3x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    LAN 1x Realtek® 8126 5G LAN
    Internal IO 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x PUMP_SYS Fan
    1x System Fan
    1x ARGB+FAN+USB2.0 Header (JAF_2)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Addressable V2 RGB LED connector (JARGB_V2)
    1x TPM pin header(Support TPM 2.0)
    2x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
    LED FEATURE 4x EZ Debug LED
    1x EZ Memory Detection LED
    BACK PANEL PORTS
    1. Clear CMOS Button
    2. 5G LAN
    3. Wi-Fi / Bluetooth
    4. Audio Connectors
    5. Flash BIOS Button
    6. HDMI™
    7. USB 5Gbps Type-A
    8. USB 10Gbps Type-A
    9. USB 20Gbps Type-C
    10. USB 10Gbps Type-A
    11. Optical S/PDIF Out
    OPERATING SYSTEM Support for Windows® 11 64-bit
    BOX CONTENT
    PCB Info Mini-ITX
    170mmx170mm

    Das könnte Ihnen auch gefallen

    Vorschaubild 1Vorschaubild 2

    MSI Motherboard PRO B760-P WIFI DDR4

    $163.68

    Vorschaubild 1Vorschaubild 2

    MSI Desktop PC Netzteil ATX 650Watt 80 Plus Gold MAG A650GL

    $116.58

    Vorschaubild 1Vorschaubild 2

    MSI Desktop PC Netzteil ATX 650 Watt 80 Plus MAG A650BN

    $88.20

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI Dektop PC Netzteil MAG A750BN PCIE5

    $93.03

    $32.56

    Vorschaubild 1Vorschaubild 2

    MSI Mainboard PRO Z790-P WIFI

    $255.53

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI Desktop PC Netzteil ATX 1000Watt 80 Plus Gold MPG A1000G PCIE5

    $234.33

    $82.02

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI Motherbaord PRO B760-P DDR4 II

    $158.97

    $55.64

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI MAG CORELIQUID E240 – 240 mm AIO-Wasserkühler mit 2×120 mm PWM ARGB-Lüftern

    $128.35

    $44.92

    Vorschaubild 1Vorschaubild 2

    MSI SSD SPATIUM M580 PCIe 5.0 NVMe M.2 4TB FROZR

    $647.64

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI MAG CORELIQUID E360 WHITE – 360 mm AIO-Wasserkühler mit 3×120 mm ARGB-Lüftern

    $163.68

    $57.29

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI MAG CORELIQUID I240 WHITE – 240 mm AIO-Wasserkühler mit 2×120 mm ARGB-Lüftern

    $128.35

    $44.92

    -65%
    Vorschaubild 1Vorschaubild 2

    MSI SSD SPATIUM M560 PCIe 5.0 NVMe M.2 1TB

    $294.38

    $103.03
